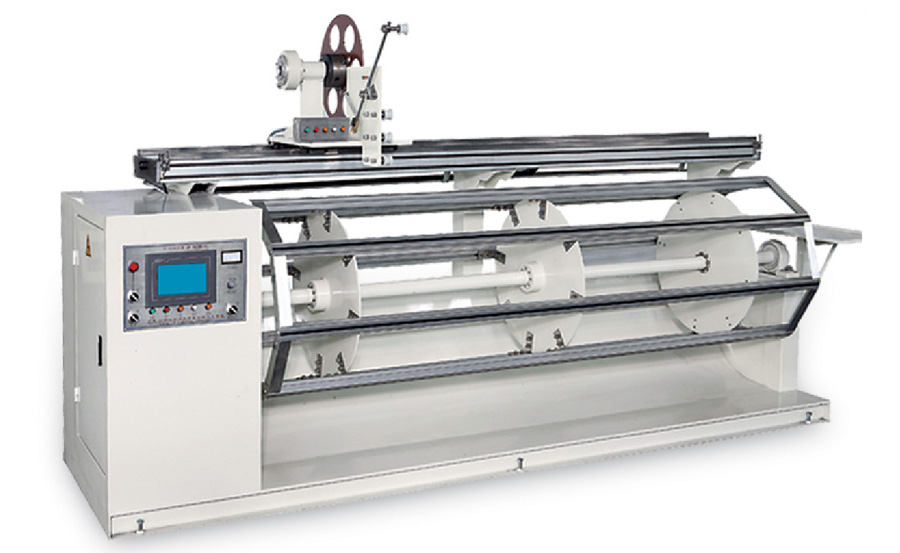

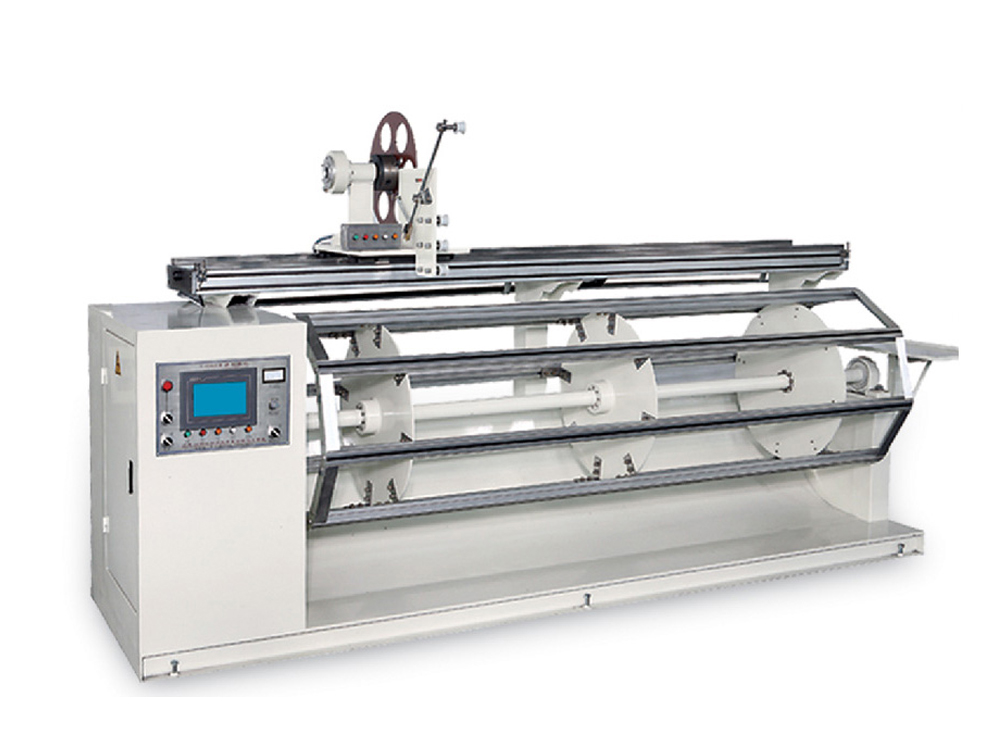

Half-fold wrapping machine

  • Model:
  • Power:
  • Weight:
  • Describe:



 性能特點
  Performance Characteristics


    1. 層間疊距0~20任意設定,換向根據設定,或到限位自動換向;
     2. 主機速度隨時可調0~200轉/分,操作靈活,根據設定或限位自動停機;
     3. 缺紙、斷紙自動停機。
     1.Interlamination overlapping distance can be setting at 0-20, and the direction changing can be effected as per the presetting or automatic reversing occurs when the limit position is reached.
     2.The speed of the main machine can be adjusted to 0-200rpm as desired, and the machine can be automatically shut down according to the presetting or limit.
     3.The machine will automatically shut down upon lacking paper or paper breaking.


 技術參數
  Technical parameters







 電源電壓
  Voltage


 380V AC


 工作長度
  Working length


 0-2200mm


 繞制直徑
  Winding diameter


 700mm


 紙帶厚度
  Paper tap thickness


 0.15mm


 紙帶寬度
  Paper tap width


 10-20mm


 整機噪音
  Machine noise


 50-60db


 總功率消耗
  Total power consumption


 4.5Kw


 繞制速度
  Winding speed


 0-200mm/min


 包繞進給速度
  Wrapping feed speed


 0-1000mm/min


 包繞層精度
  Wrapping layer accuracy


 1匝


 機器外形規格
  Outsize (L*W*H)


 3000*800*1500mm


 整機重量
  Machine weight


 500Kg
